Equipment Set for Universal Manufacturing

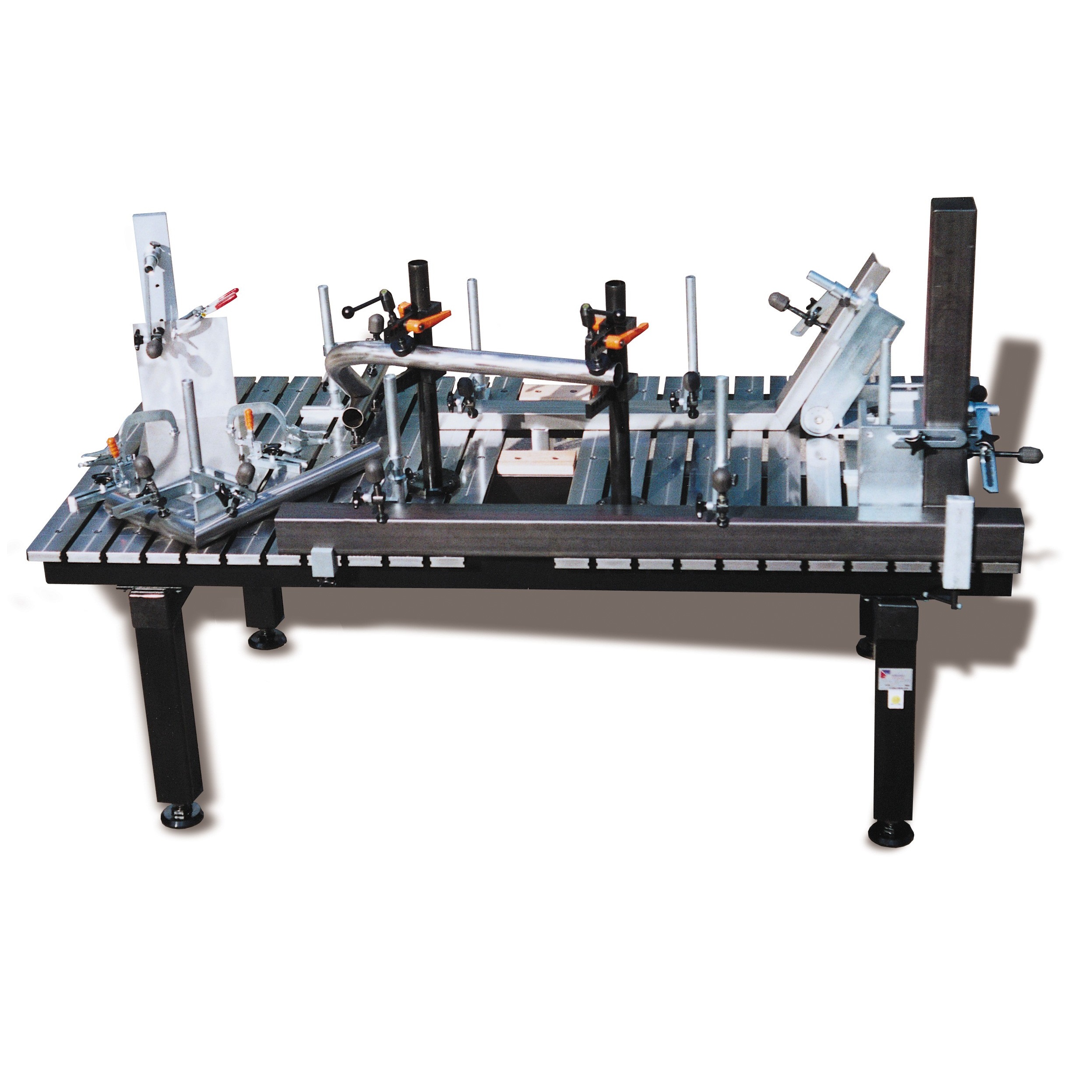

This equipment set from Forster America comes with all of the tools needed for universal manufacturing.

Product Details

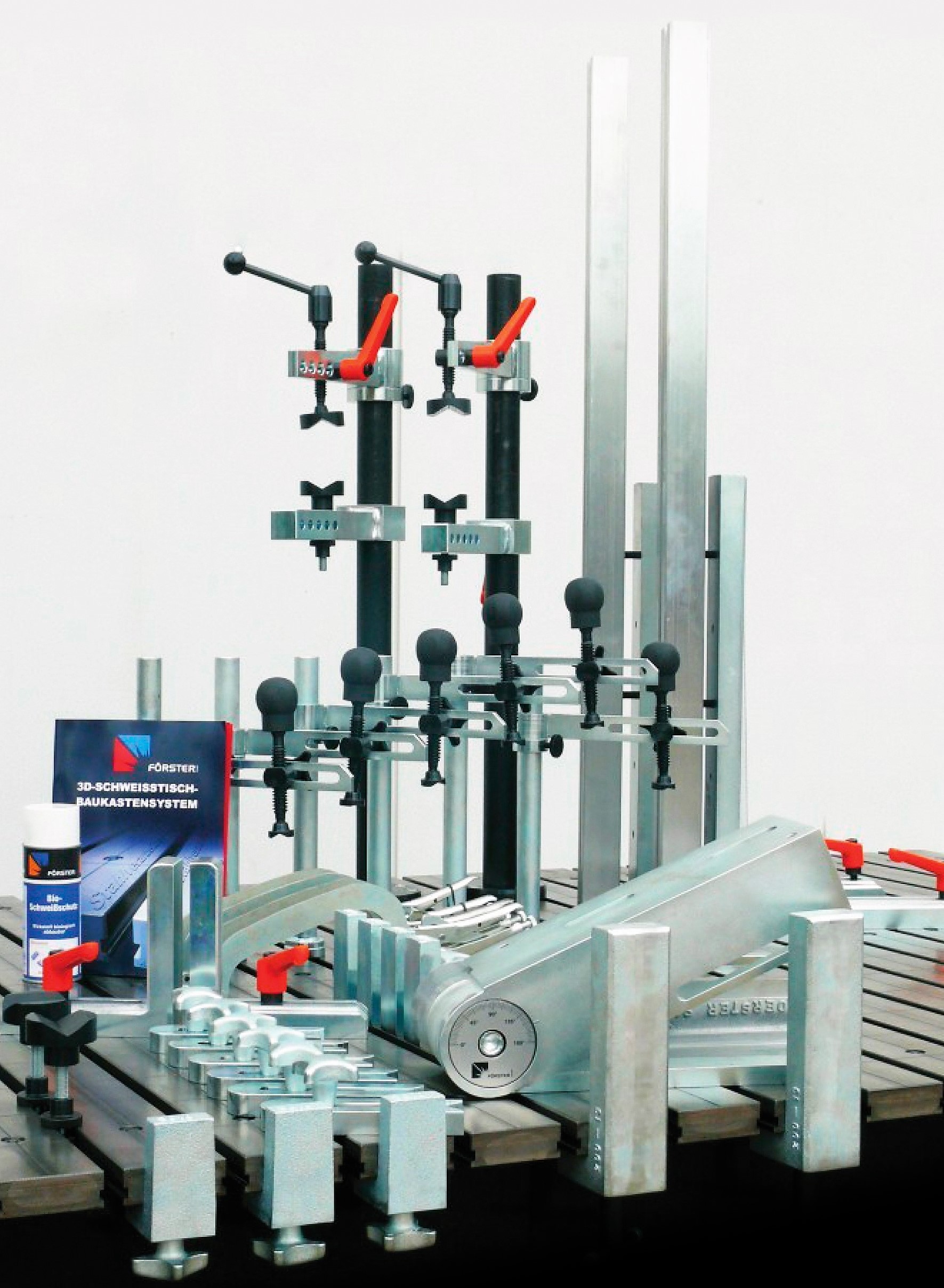

Forster America’s full equipment set for universal manufacturing includes:

Image Description
(6x) Clamping Arm 30 mm – Clamping Arm 30 mm (1.2 in). Steel finish, chromated. With sliding and pivoting clamping element. Pad 30 mm (1.2 in) with V-pad in steel finish.
(4x) Flat Clamp – Flat Clamp 305 x 350 mm (13.7 x 13.7 in), chromated, adjustable. For holding flat components tightly in position. Throat depth 200 mm (7.8 in). Max. Clamping height 110 mm (4.3 in). Steel finish, chromated.
(3x) Edge Angle Height 70 mm – Right-angle bracket 70 mm (2.7 in). For straight and right-angle positioning of components along the edge of the table. Clamping side slightly chamfered for secure fitting. Chromated, with screw top.
(2x) Edge Angle Height 200 mm – Right-angle bracket, 200 mm (7.9 in), for straight and right-angle positioning of components along the edge of the table. Clamping side slightly chamfered for secure fitting. Chromated. With screw stop.
(6x) Flat Stop – Flat Stop 170 x 40 x 20 mm (6.7 x 1.6 x 0.8 in). Chromated steel, with locking screw.
(2x) Double T-Slot Profile 1.200 mm with 2 screws and 2 T-Nuts for assemblage on Try-Square – Double T-Slot Profile made out of high-strength F37 aluminum alloy. All Forster clamping elements and stops can be fastened in its standard 14 mm T-slot to use as an attachment for right-angle brackets as well as for building stop walls for 3-D sheet metal constructions. The profiles can be shifted and locked on 2 axes at the same time using the special connecting elements. Simple connectors and connectors for biaxial shifting are available as accessories.
(1x) Continuously adjustable Angle – Continuously adjustable Angle 350 x 350 mm (13.7 x 13.7 in). Chromated steel, with Allen key and locking screw.
(4x) V-Block Support 60 mm – Adjustable V-Block support with steel pad Ø 60 mm (2.3 in). With threaded piece, adjusting screw and T-slot nut.
(6x) Clamping Column 30 x 350 mm – Clamping Tube 30 x 350 mm (1.2 x 14 in). Precision steel pipe, chromated, with slot nut and shaft collar.
(2x) Clamping Tower 50 x 900 mm – Clamping pole 50 x 900 mm (2 x 35.4 in). Precision steel pipe for continuous 3-D clamping. Freely movable.
(2x) Clamping Arm 50 mm – Clamping arm 50 mm (2 in). Chromated steel, complete with sliding and pivoting clamping element (with steel V-pad 60 mm (2 in).
(2x) Support Arm 50 mm – Supporting arm 50 mm (2 in). Steel finish, for continuous 3-D clamping. Freely movable.
(4x) Try-Square 100 x 170 mm – Right-angle bracket 100 x 170 mm (4 x 6.7 in). Outer surfaces machined, chromated. With locking screw. For use on table top to securely hold weldments in place.
(2x) Try-Square 170 x 170 mm – Right-angle bracket 170 x 170 mm (6.7 x 6.7 in). Outer surfaces machined, chromated. With locking screw. For use on table top to securely hold weldments in place.
(2x) Try-Square 600 x 350 mm – Right-angle bracket 600 x 350 mm (23.6 x 13.7 in). Outer and side surfaces machined, chromated, with six threaded holes. Inclusive locking lever. Provides a precise 90º angle surface to securely hold weldments in place.

Additional information

Product model 613104
Product Number 613104
