Clamping Columns & Arms

  • Clamping poles in precision steel pipe
  • For 3-D clamping
  • Continuous and freely movable

Get a quote !

Clear

Product Details

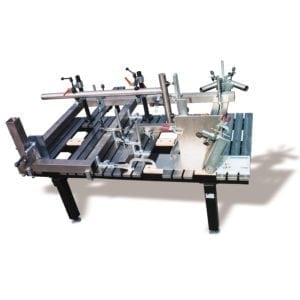

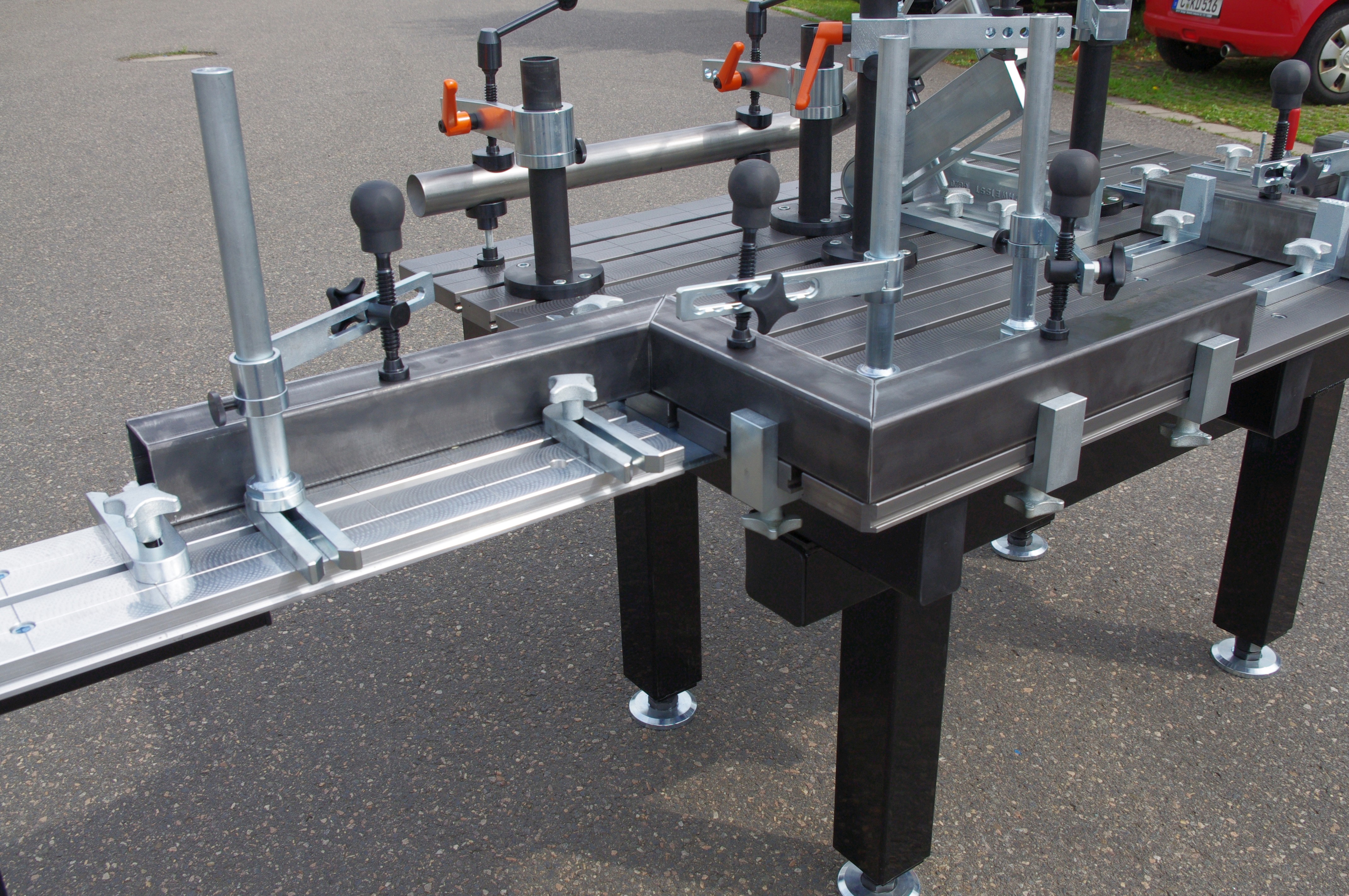

All of our angles, clamping elements and clamping arms give the welder the opportunity to easily and steplessly reach all points on the table thanks to their special slot design. Stepless shifting and precise positioning is only possible with the cooperation of the groove in the table as Y-axis and the special slot cut-out in each clamping element, clamping arm and angle as X-axis. Each slot is exactly 100 mm long and serves as a bridge to cover the difference up to the next table slot.

Even while working, it is still possible to incorporate further clamping elements later with our rhombic groove stone, which can be inserted from the top into the T-slot to incorporate forgotten clamping elements later, without having to dismantle everything again. This not intended to absorb large forces, but can give the welder the opportunity without major interruption still insert clamping elements during the job.

Additional information

Product model 612020 612021 612022 612052 612053 612054 612055 612056
Product Number612020612021612022612052612053612054612055612056

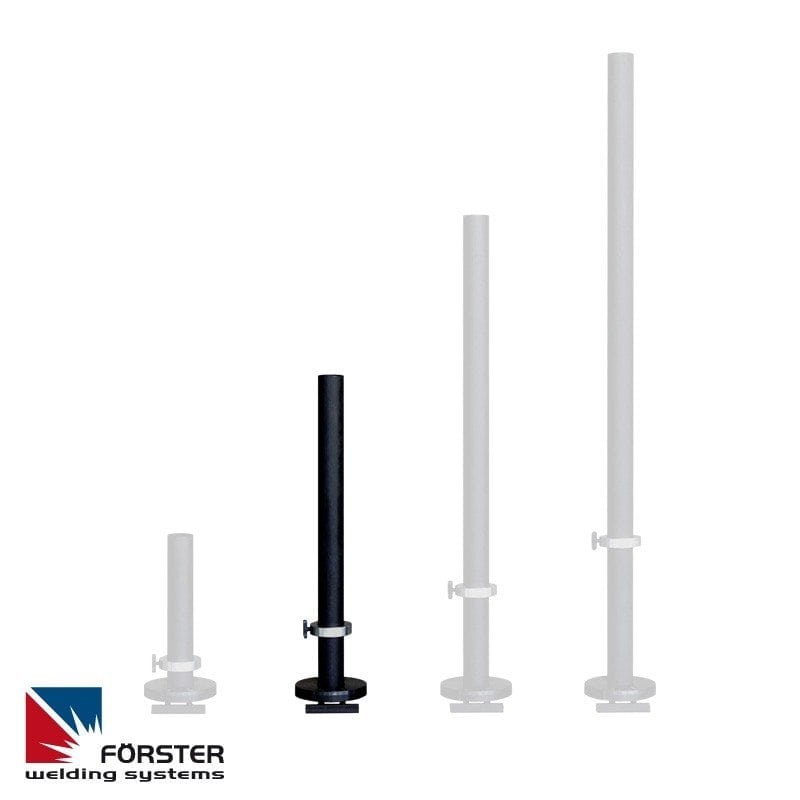

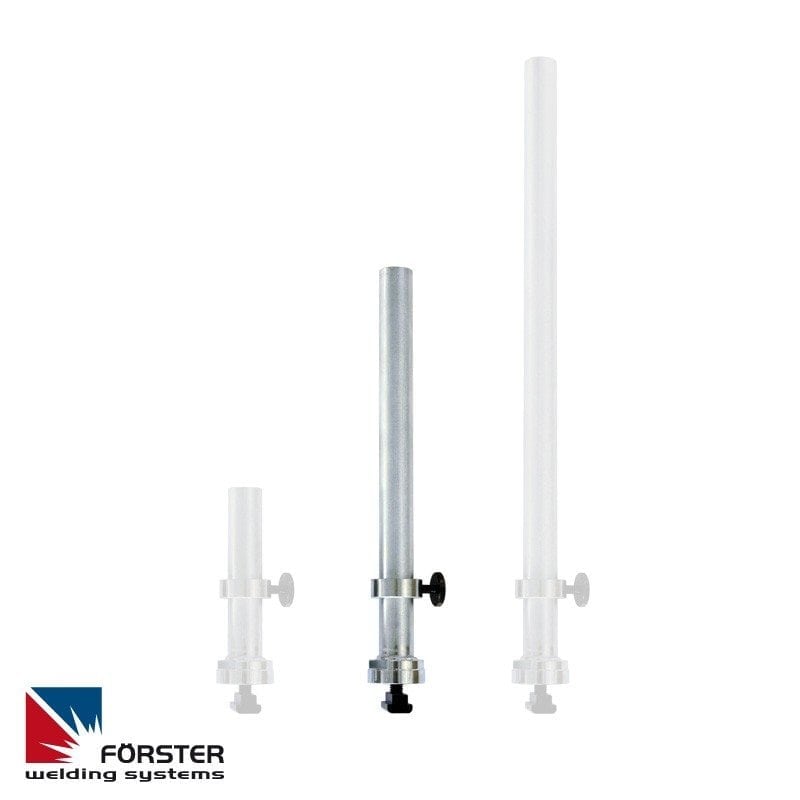

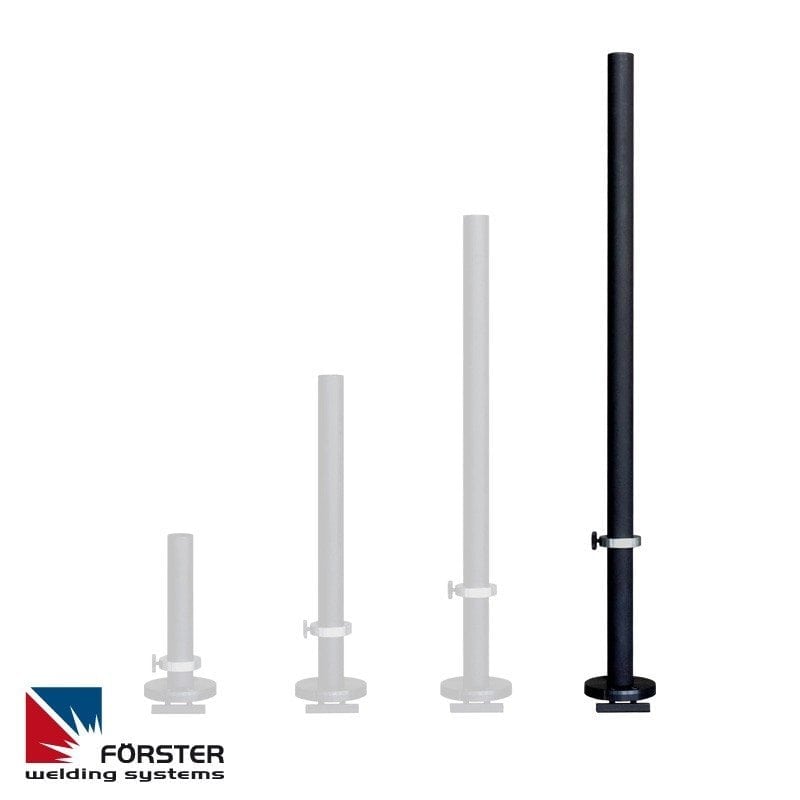

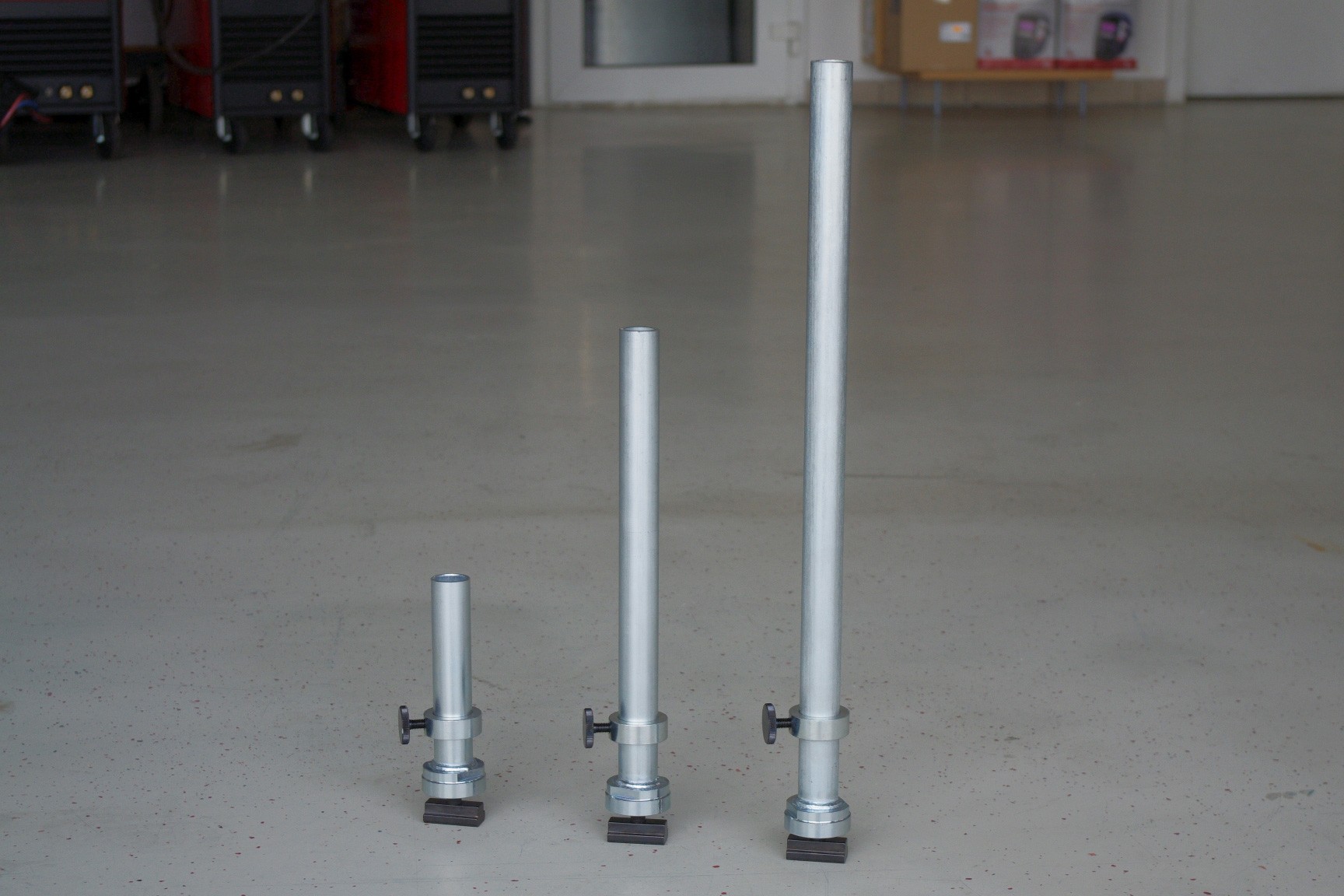

DescriptionClamping Column, 30 mm x 150 mmClamping Column, 30 mm x 350 mmClamping Column, 30 mm x 550 mmClamping Tower, 50 mm x 300 mmClamping Tower, 50 mm x 600 mmClamping Tower, 50 mm x 900 mmClamping Tower, 50 mm x 1.200 mmClamping Tower, 50 mm x 1.500 mm
