Clamping Elements

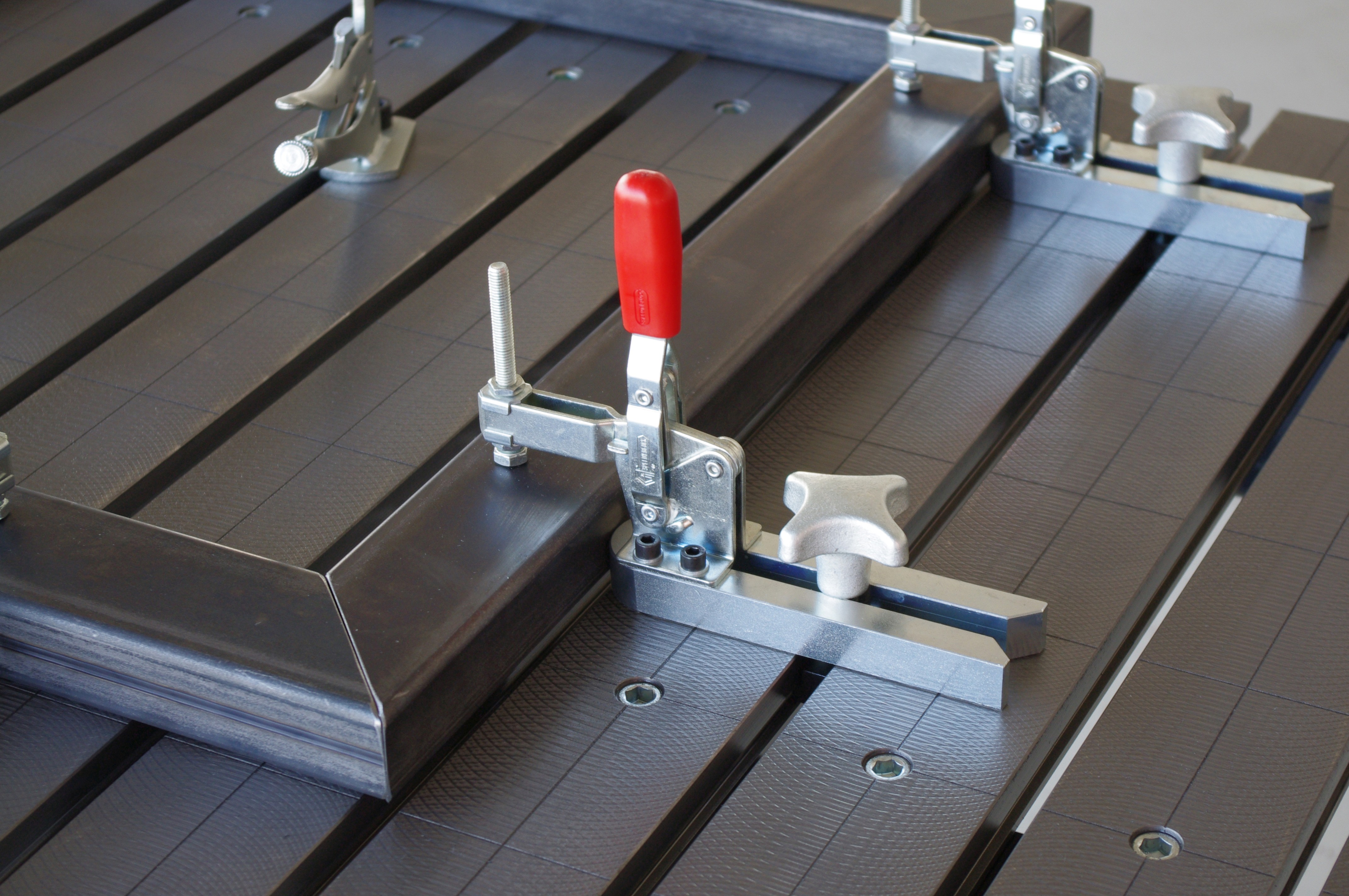

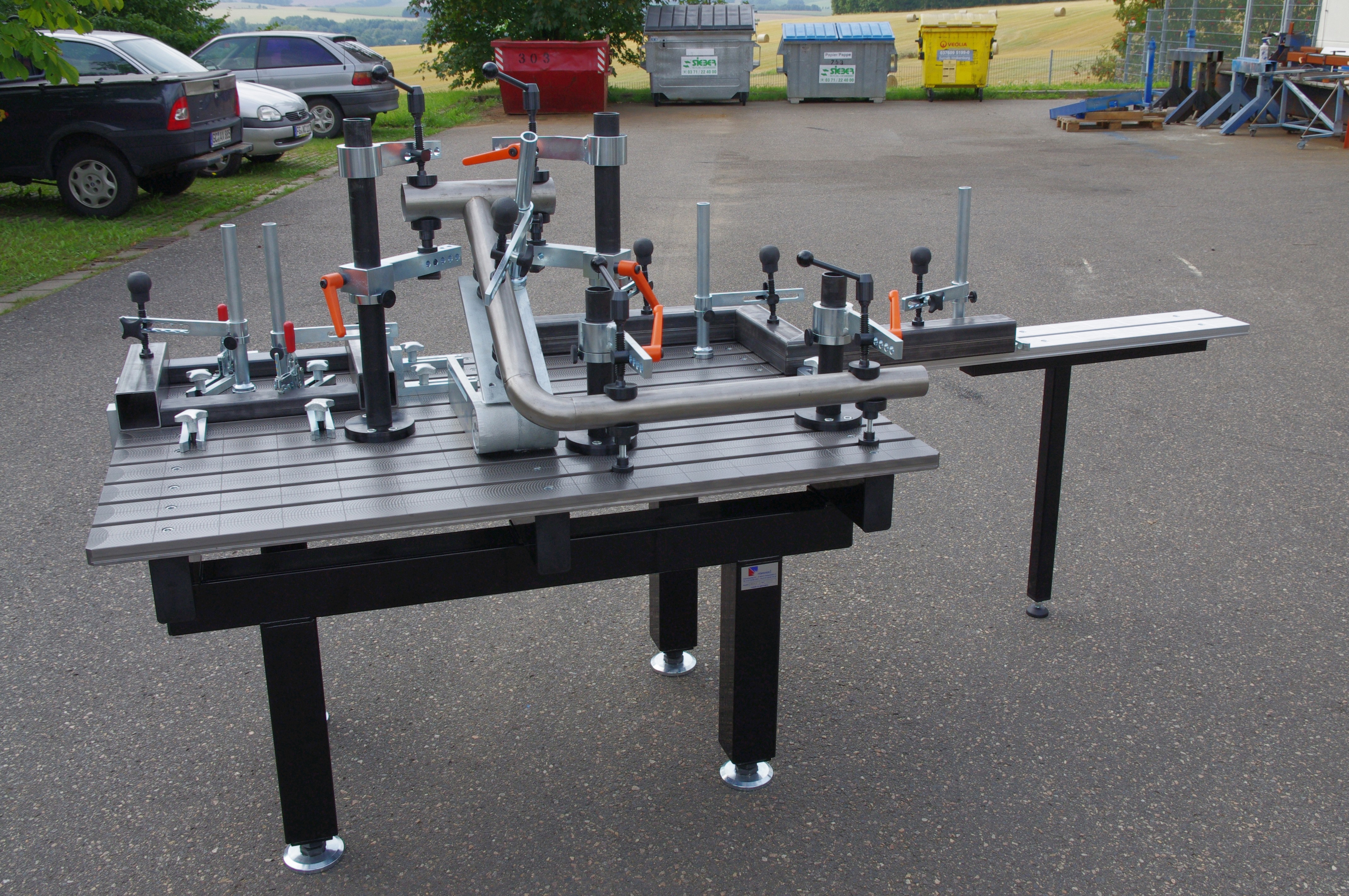

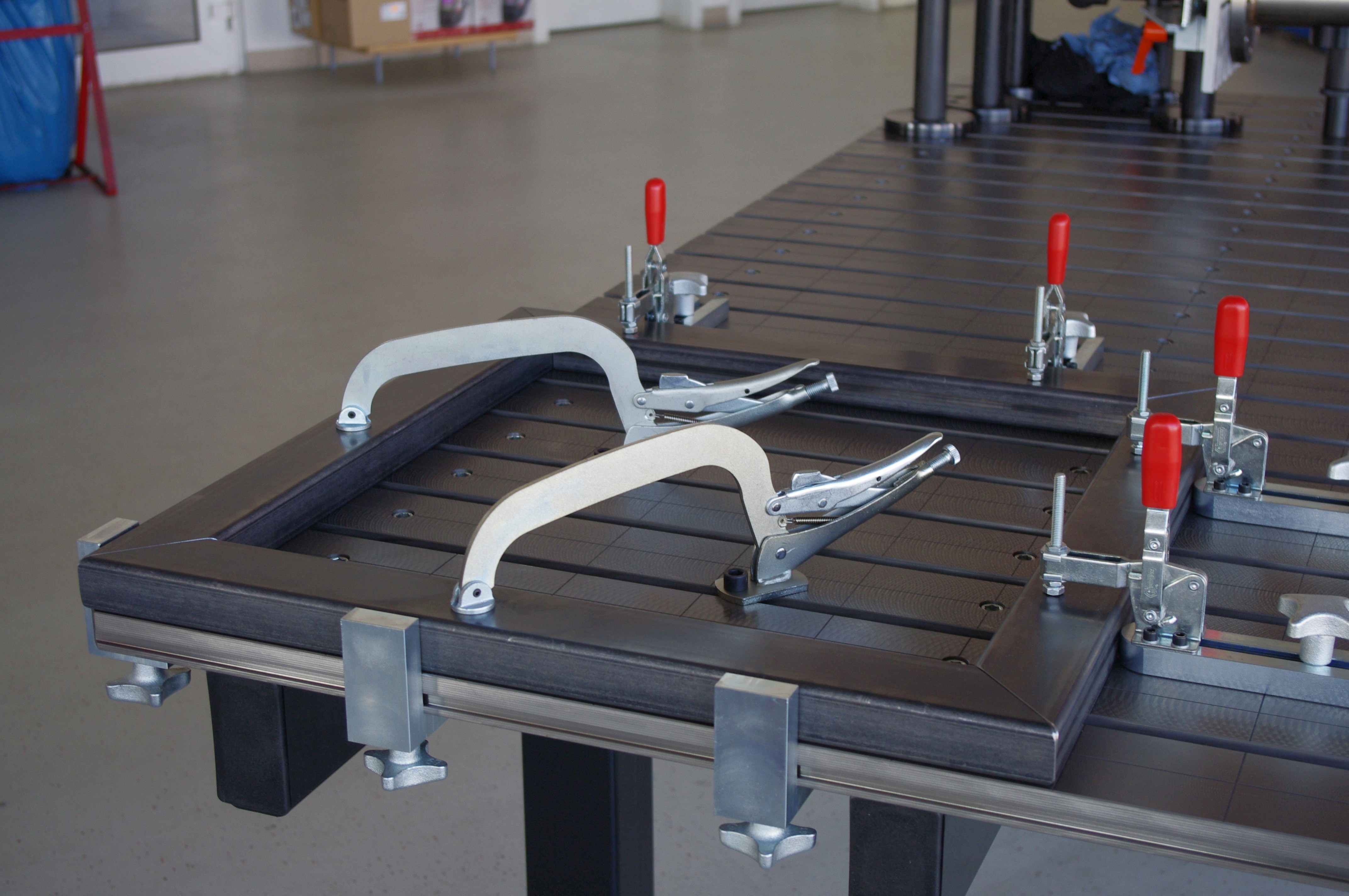

All of our angles, clamping elements and clamping arms give the welder the opportunity to easily reach all points on the table thanks to their special slot design.

View More Details

Get a quote !

Clear

Product Details

All of our angles, clamping elements and clamping arms give the welder the opportunity to easily and steplessly reach all points on the table thanks to their special slot design. Stepless shifting and precise positioning is only possible with the cooperation of the groove in the table as Y-axis and the special slot cut-out in each clamping element, clamping arm and angle as X-axis. Each slot is exactly 100 mm long and serves as a bridge to cover the difference up to the next table slot.

Even while working, it is still possible to incorporate further clamping elements later with our rhombic groove stone, which can be inserted from the top into the T-slot to incorporate forgotten clamping elements later, without having to dismantle everything again. Is not intended to absorb large forces, but can give the welder the opportunity without major interruption later still use clamping elements.

Additional information

Product model 612010 622010 Br 612040 622040 Br 612041 612042 622042 Al 612043 622043 Br 612044 622044 Br 612045 622045 Br 612050 622050 Br 612051 622051 Br 613030
Product Number 612010 622010 Br 612040 622040 Br 612041 612042 622042 Al 612043 622043 Br 612044 622044 Br 612045 622045 Br 612050 622050 Br 612051 622051 Br 613030
Description Clamping Arm, Ø 30 mm Clamping Arm, Ø 30 mm with bronze press piece Flat Clamp Flat clamp with bronze press piece Clamping Jaws Quick-release Clamp with flat stop Quick-release Clamp with flat stop Aluminum Horizontal Clamp Horizontal Clamp with bronze press piece Horizontal Clamp, height adjustable, with clamping tower Ø 50mm x 600mm Horizontal Clamp with bronze press piece, height adjustable, with clamping tower Ø 50mm x 600mm Horizontal Clamp, height adjustable, without clamping tower Horizontal Clamp with bronze press piece, height adjustable, without clamping tower Clamping Arm, Ø 50 mm Clamping Arm with bronze press piece, Ø 50 mm Support Arm, Ø 50 mm Support Arm with bronze press piece, Ø 50 mm Flange Clamp with clamping tower, 50 mm x 600 mm
Part Application Steel finish, chromated. With sliding and pivoting clamping element. V-shaped pad provides secure pressure on angled or round weldments. V-pad consisting of steel. Steel finish, chromated. With sliding and pivoting clamping element. V-shaped pad provides secure pressure on angled or round weldments. V-pad consisting of bronze. For holding flat components tightly in position. Throat depth 200 mm (7.8 in). Maximum clamping height 110 mm (4.3 in). Adjustable. Pad consisting of steel. For holding flat components tightly in position. Throat depth 200 mm (7.8 in). Maximum clamping height 110 mm (4.3 in). Adjustable. Pad consisting of bronze. C-clamp for clamping flat components to right-angle brackets. Throat depth 70 mm (2.7 in). Maximum clamping range 60 mm (2.3 in). Adjustable. For clamping sheet metal and small components. Quick-release clamp can be freely positioned along the x- and y-axis with the integrated flat stop. For clamping sheet metal and small components. Quick-release clamp can be freely positioned along the x- and y-axis with the integrated flat stop. Aluminum finish. For applying horizontal clamping forces, with steel pad. For clamping arms Ø 30 mm (clamping arm not included). For applying horizontal clamping forces, with bronze pad. For clamping arms Ø 30 mm (clamping arm not included). For applying horizontal clamping forces at various heights. Continuously adjustable on clamping arms Ø 50 mm (arm not included). For applying horizontal clamping forces at various heights. Continuously adjustable on clamping arms Ø 50 mm (arm not included) with pad in bronze finish. Steel finish, chromated. With sliding and pivoting clamping element with V-pad in steel finish. Pad size 60 mm (2.3 in) Steel finish, chromated. With sliding and pivoting clamping element with V-pad in bronze finish. Pad size 60 mm (2.3 in) Steel finish. For 3-d clamping. Continuously adjustable and freelymovable. With steel pad. Steel finish. For 3-d clamping. Continuously adjustable and freely movable. With bronze pad. For unlimited positioning of different sized flanges, with bolt sizes from 97-355 mm (3.8 - 14 in) and a bore diameter of 13 mm (0.5 in). Contact surface and clutch made out of stainless steel.
