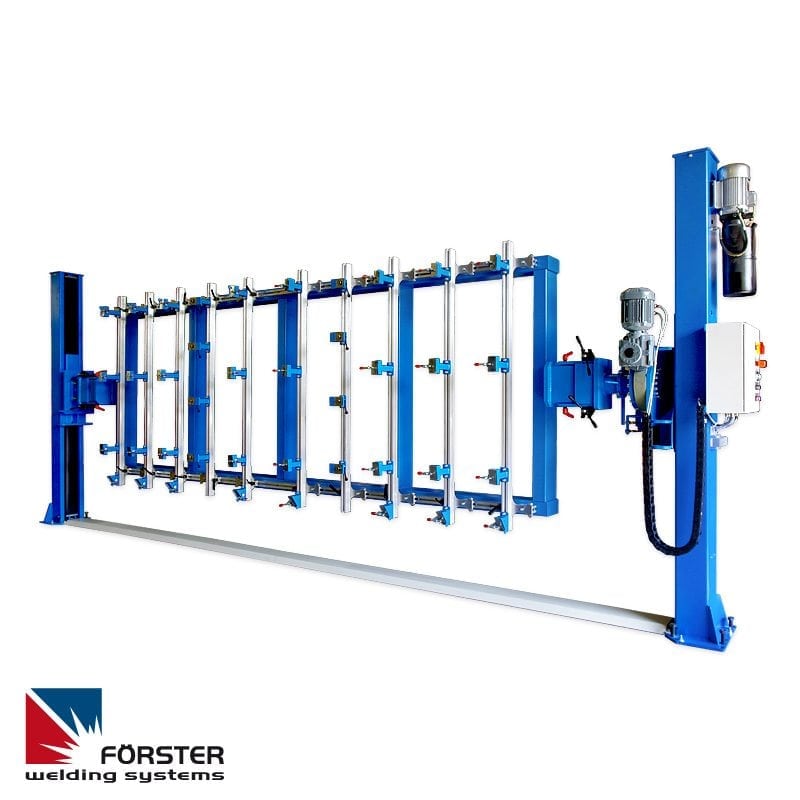

Frame Welding Fixture

  • Parallel movable exactly according to scale

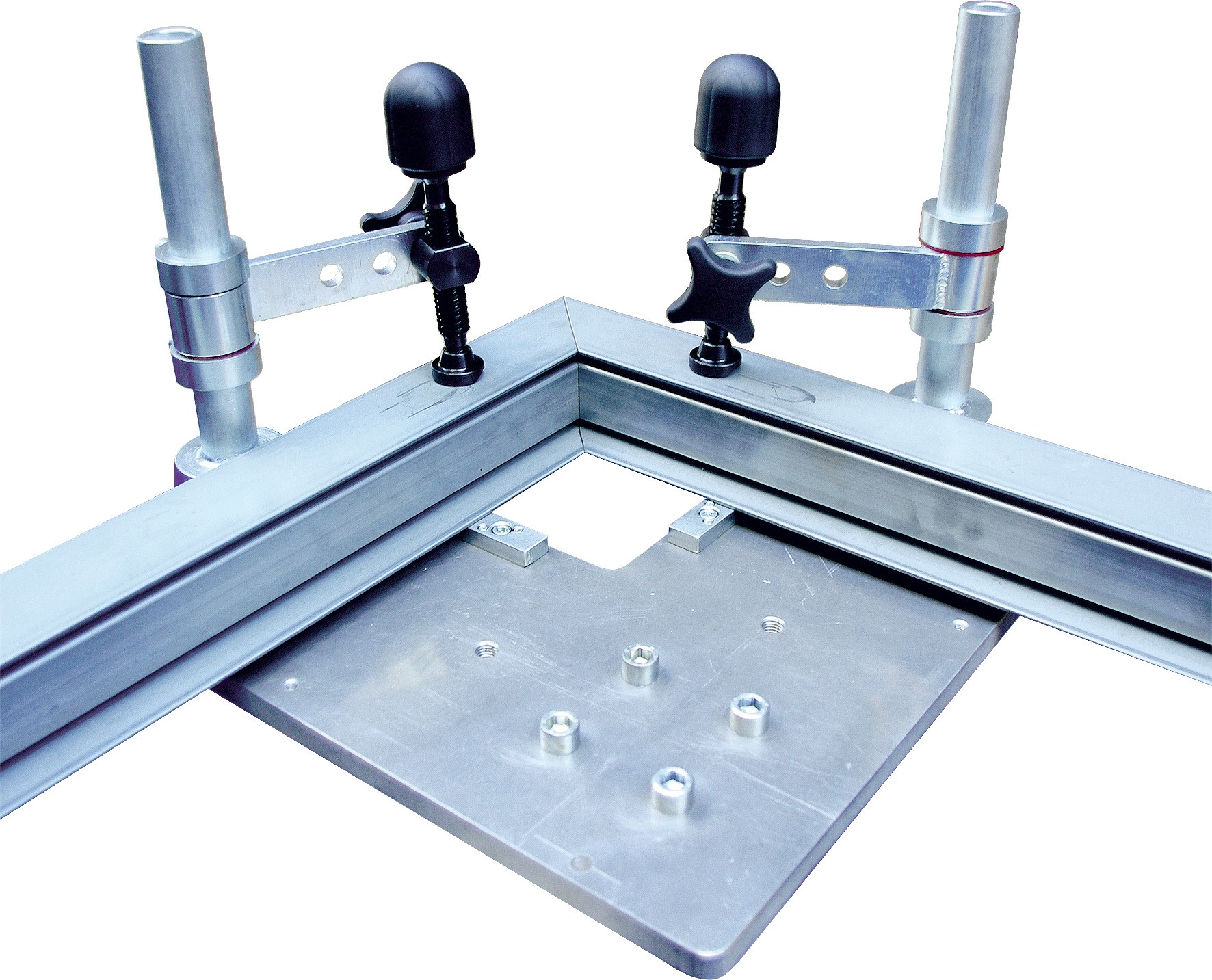

  • 360° welding with clamping corner braces that have been specifically designed for this purpose
  • New drill operated gear rotational system to support all max frame sizes

Get a quote !

Clear

Product Details

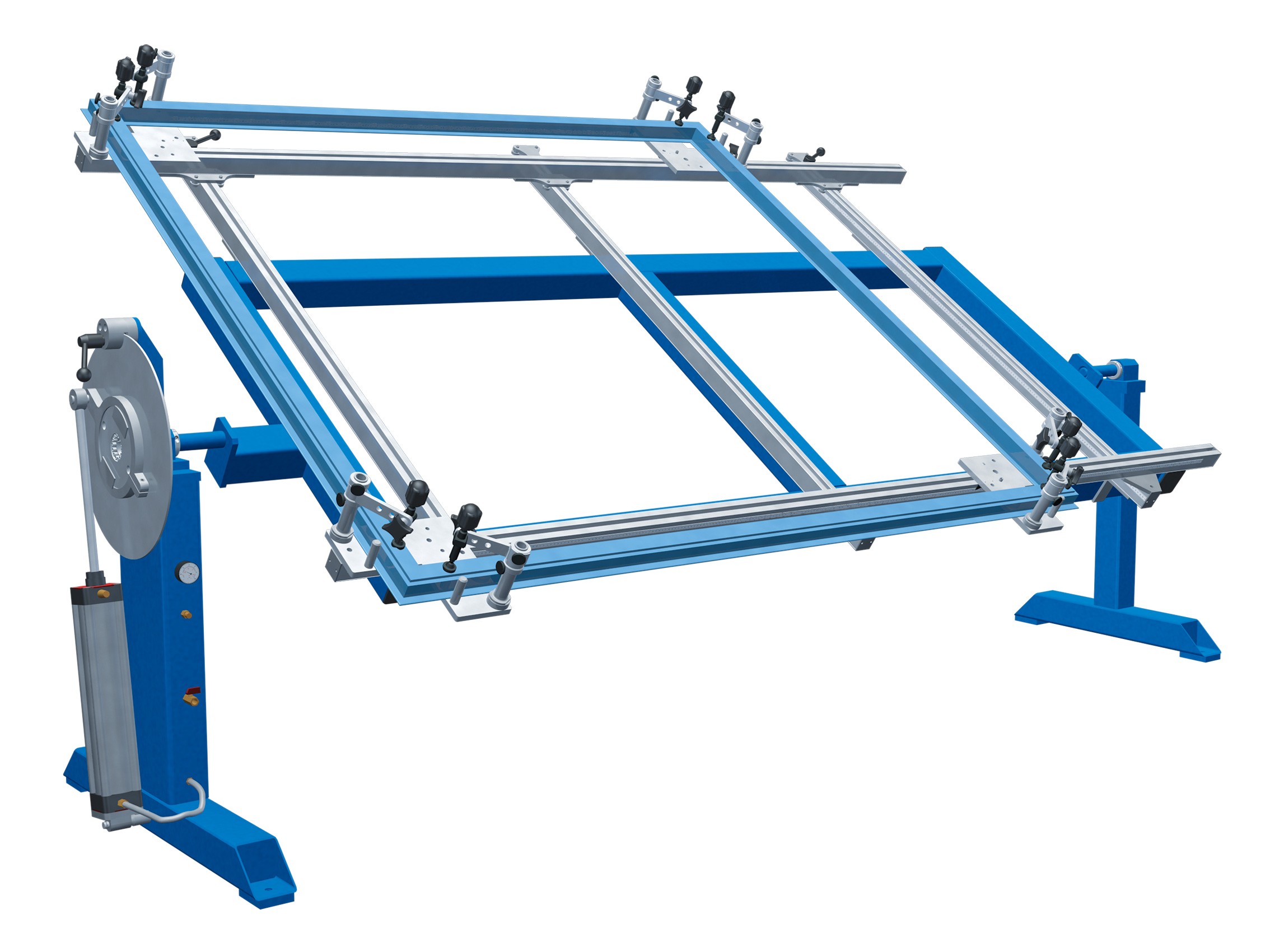

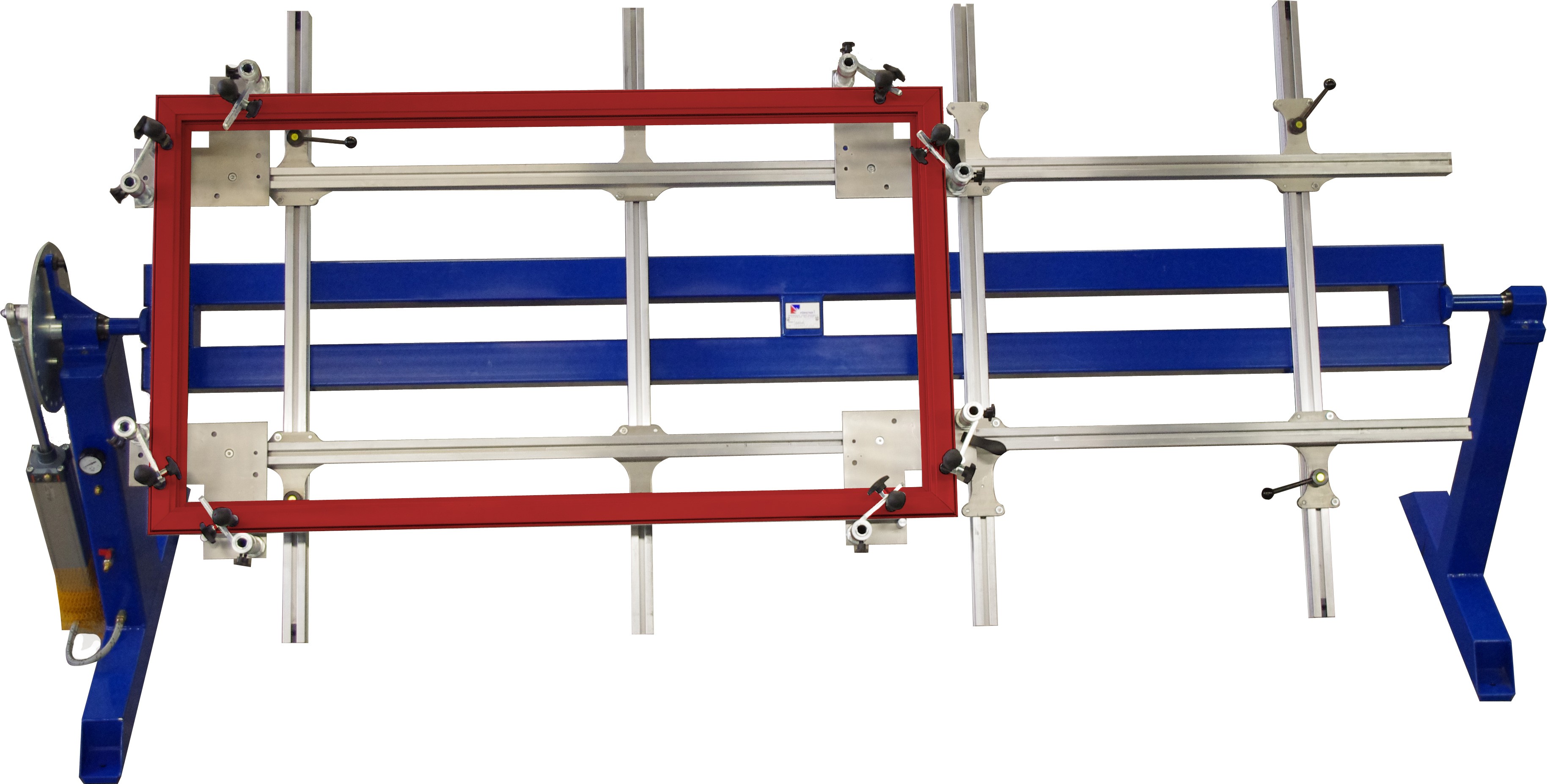

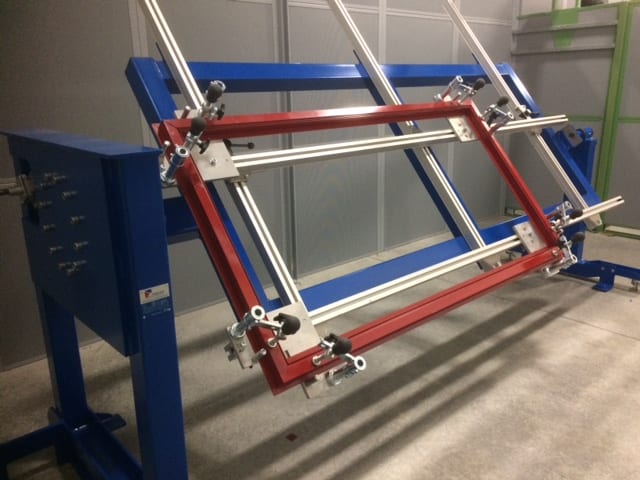

Forster America frame welding fixtures offer fast and easy adjustments for welding on all sides of rectangular frames. The frame railing fixture exposes the angles on the upper and lower side of the frame are exposed for welding operations. Mechanical clamping elements, with spindle-compression, are located in close proximity to the weld joint, allowing irregularities in the joint to be sensitively compensated. The clamping corner on the left target forms the 0-point of the x- and y-axis. The Frame Welding Fixtures can be swiveled about 225° to 360°, depending on the size of your components to allow the frames to be welded overleaf.

Additional Specs for All Frame Fixtures:

– power supply: 380 – 480 V/ 50 – 60 Hz
– 4x clamping corner adjustable according to measuring tape
– level of axis 1.000 mm
– in x-axis and y-axis manually adjustable
– profile cross-section: max. 100 x 100 mm
– mass transmission by the front clamping corner left side

Additional information

Product model 64203015 64103020 64103025 64304320 64304325 64504330
Product Number 64203015 64103020 64103025 64304320 64304325 64504330
Dimensions Frame Welding Device for Frames 3.000x1.500 mm Frame Welding Device for Frames 3.000x2.000 mm Frame Welding Device for Frames 3.000x2.500 mm Frame Welding Device for Frames 4.300x2.000 mm Frame Welding Device for Frames 4.300x2.500 mm Frame Welding Device for Frames 4.300x3.000 mm
Pivoting Range 360° swiveling electromotive 225° swiveling electromotive 225° swiveling electromotive 225° swiveling electromotive 225° swiveling electromotive 225° swiveling electromotive
Max. Working Load max. weight 200kg max. weight 200kg max. weight 200kg max. weight 200kg max. weight 200kg max. weight 300kg
