Equipment Set for Tube Manufacturing

This equipment set from Forster America comes with all of the tools needed for tube manufacturing.

Product Details

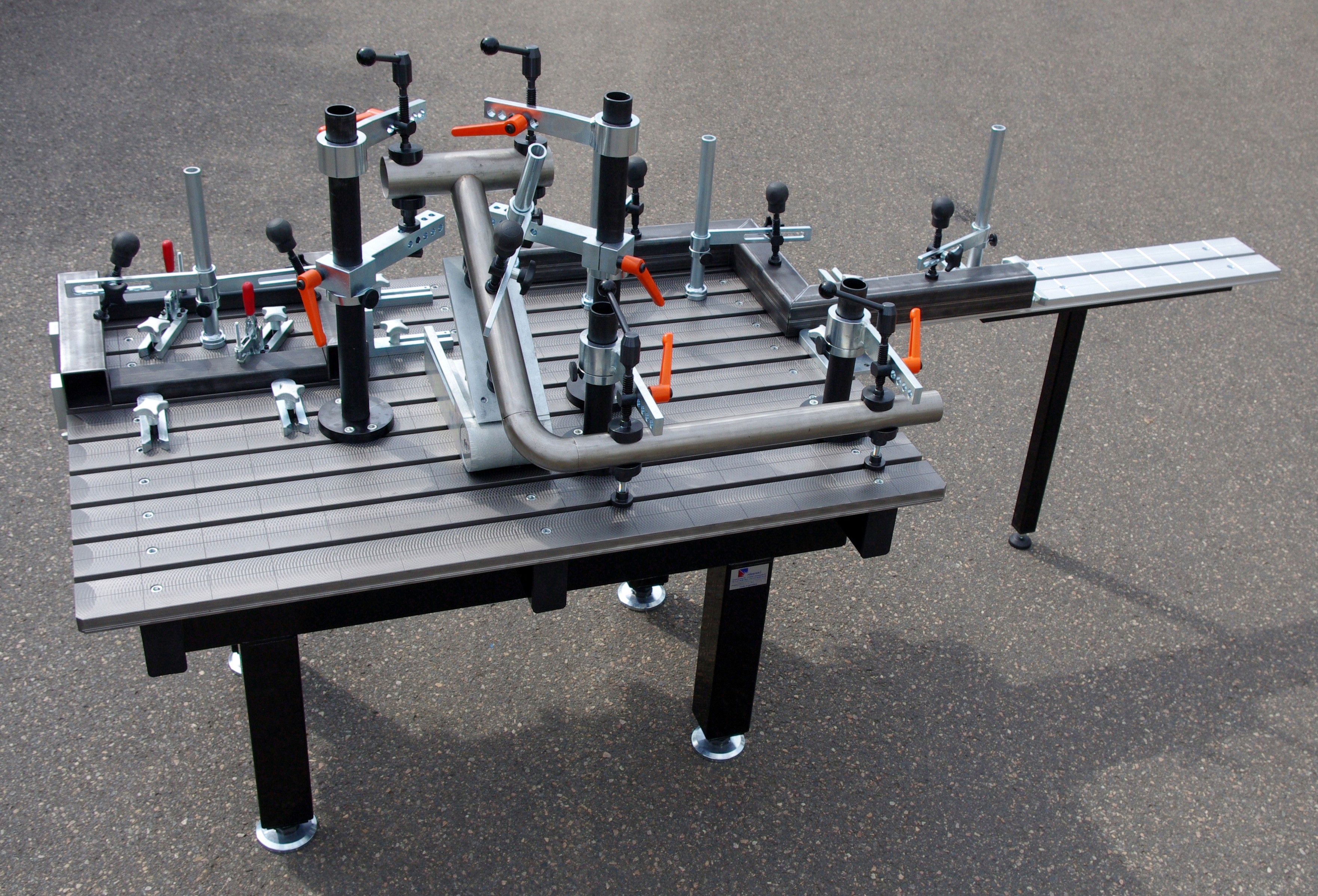

Forster America’s full equipment set for tube manufacturing includes:

Image Description

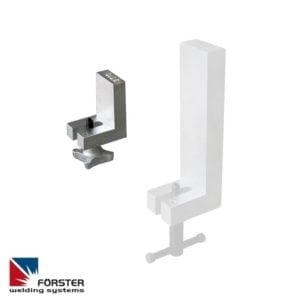

(6x) Clamping Arm, 30 mm – Steel finish, chromated. With sliding and pivoting clamping element. Pad 30 mm (1.2 in) with V-pad in steel finish.
(4x) Edge angle height 200 mm – Right-angle bracket, 200 mm (7.9 in), for straight and right-angle positioning of components along the edge of the table. Clamping side slightly chamfered for secure fitting. Chromated. With screw stop.
(6x) V-block support 60 mm – Adjustable V-Block support with steel pad 60 mm (2.3 in). With threaded piece, adjusting screw and T-slot nut.
(4x) V-block support 100 mm – Adjustable V-Block support with steel pad 100 mm (3.9 in). With threaded piece, adjusting screw and T-slot nut.
(2x) Flange Clamp with clamping tower – Flange clamp with clamping pole 50 x 600 mm (2 x 23.6 in). For unlimited positioning of different sized flanges with bolt sizes from 97 – 355 mm (3.8 x 14 in) and a bore diameter of 13 mm (0.5 in). Contact surface and clutch made out of stainless steel.
(6x) Clamping Column, 30 mm x 350 mm – Clamping tube 30 x 350 mm (1.2 x 14 in). Precision steel pipe, chromatid with T-slot nut and shaft collar.
(4x) Clamping Tower, 50 x 900 mm – Clamping pole 50 x 900 mm (2 x 35.4 in). Precision steel pipe for continuous 3-D clamping. Freely movable.
(4x) Clamping Arm, 50 mm – Clamping arm 50 mm (2 in). Chromated steel, complete with sliding and pivoting clamping element (with steel V-pad 60 mm (2 in).
(4x) Support Arm, 50 mm – Supporting arm 50 mm (2 in). Steel finish, for continuous 3-D clamping. Freely movable.
(4x) Try-Square, 100 x 170 mm – Right-angle bracket 100 x 170 mm (4 x 6.7 in). Outer surfaces machined, chromatid. With locking screw. For use on table top to securely hold weldments in place.
(2x) Try-square 170 x 170 mm – Right-angle bracket 170 x 170 mm (6.7 x 6.7 in). Outer surfaces machined, chromatid. With locking screw. For use on table top to securely hold weldments in place.
(2x) Try-Square 600 x 350 mm – Right-angle bracket 600 x 350 mm (23.6 x 13.7 in). Outer and side surfaces machined, chromatid, with six threaded holes. Inclusive locking lever. Provides a precise 90º angle surface to securely hold weldments in place.

Additional information

Product model 613102
Product Number 613102
