Equipment Set for Stainless Steel Rack & Case Manufacturing

This equipment set from Forster America comes with all of the tools needed for stainless steel rack and case manufacturing.

Get a quote !

Clear

Product Details

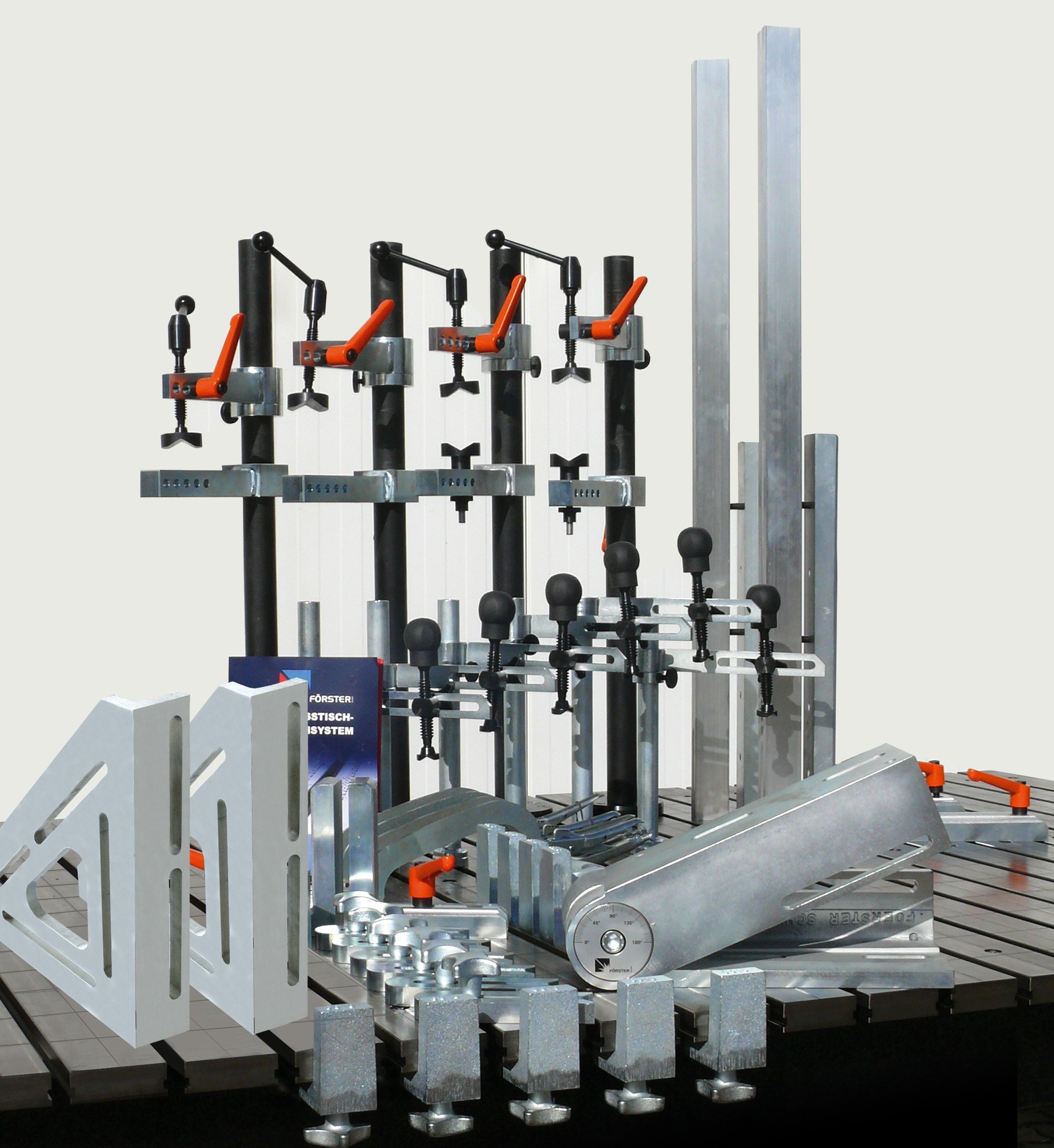

Forster America’s full equipment set for stainless steel rack and case manufacturing includes:

Image Description
(6x) Clamping Arm 30mm (bronze press piece) – Steel finish, chromated. With sliding and pivoting clamping element. Pad 30 mm (1.2 in) with V-pad in steel finish.
(4x) Flat Clamp Flat Clamp 305 x 350 mm (13.7 x 13.7 in), adjustable. – For holding flat components tightly in position. Throat depth 200 mm (7.8 in). Max. Clamping height 110 mm (4.3 in). Steel finish, chromated.
(5x) Edge Angle Height Right-angle bracket 70 mm (2.7 in) (aluminum).  – For straight and right-angle positioning of components along the edge of the table. Clamping side slightly chamfered for secure fitting. Chromated, with screw top.
(6x) Flat Stop 170 x 40 x 20 mm (6.7 x 1.6 x 0.8 in) (aluminum).  – Chromated steel, with locking screw.
(2x) Double Slot Profile 1,200 mm with two screws and 2 T-nuts for assemblage on Try-Square –  Double T-Slot Profile made out of high-strength F37 aluminum alloy. All Forster clamping elements and stops can be fastened in its standard 14 mm T-slot to use as an attachment for right-angle brackets as well as for building stop walls for 3-D sheet metal constructions. The profiles can be shifted and locked on 2 axes at the same time using the special connecting elements. Simple connectors and connectors for biaxial shifting are available as accessories.
(1x) Continuously adjustable Angle – Continuously adjustable Angle 350 x 350 mm (13.7 x 13.7 in). Chromated steel, with Allen key and locking screw.
(2x) Universal Angle 350 x 350 mm  – Universal Stop 350 x 350 mm (13.7 x 13.7 in). Aluminum, with 2 locking elements. Can be used as right or left angle stop.
(6x) Clamping Column 30 x 350 mm –  Clamping Tube 30 x 350 mm (1.2 x 14 in). Precision steel pipe, chromated, with slot nut and shaft collar.
(4x) Clamping Tower 50 x 900 mm  – Clamping pole 50 x 900 mm (2 x 35.4 in). Precision steel pipe for continuous 3-D clamping. Freely movable.
(4x) Clamping Arm 50 mm (bronze press piece) – Clamping arm 50 mm (2 in). Chromated steel, complete with sliding and pivoting clamping element (with steel V-pad 60 mm (2 in).
(4x) Support Arm 50 mm  – Supporting arm 50 mm (2 in). Steel finish, for continuous 3-D clamping. Freely movable.

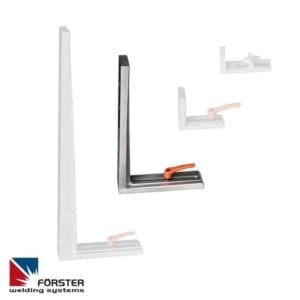

(4x) Try-Square 100 x 170 mm (aluminum) –  Right-angle bracket 100 x 170 mm (4 x 6.7 in). Outer surfaces machined, chromated. With locking screw. For use on table top to securely hold weldments in place.
(2x) Try-Square 170 x 170 mm (aluminum) –  Right-angle bracket 170 x 170 mm (6.7 x 6.7 in). Outer surfaces machined, chromated. With locking screw. For use on table top to securely hold weldments in place.
(2x) Try-Square 600 x 350 mm (aluminum) –  Right-angle bracket 600 x 350 mm (23.6 x 13.7 in). Outer and side surfaces machined, chromated, with six threaded holes. Inclusive locking lever. Provides a precise 90º angle surface to securely hold weldments in place.

Additional information

Product model 623103
Product Number 623103
